160A Heavy Duty Battery Connector Male & Female Set

This premium 160A Heavy Duty Battery Connector Male & Female Set includes both male and female connectors designed for reliable power transfer in demanding industrial environments. Engineered to handle high current applications up to 160 amps continuously, these connectors deliver exceptional performance for forklifts, electric vehicles, renewable energy systems, and other heavy-duty power applications.

Key Features:

• High Current Capacity: Rated for 160A continuous operation with excellent heat dissipation
• Durable Construction: Made from industrial-grade materials resistant to heat, corrosion, and vibration
• Secure Connection: Precision-engineered contacts ensure minimal power loss and prevent accidental disconnection
• Complete Set: Includes both male and female connectors for a complete power transfer solution
• Universal Compatibility: Works with standard 160A power systems following DIN specifications

160A Heavy Duty Battery Connector Male & Female Set – Technical Specifications:

• Current Rating: 160A continuous
• Voltage Rating: 150V DC
• Suitable for cable sizes: 25mm, 35mm and 50mm
• Contact Material: Copper alloy with silver plating for optimal conductivity
• Housing Material: High-temperature resistant polymer
• Operating Temperature: -40°C to +105°C (-40°F to +221°F)
• Connection Type: Crimp or solder (terminals sold separately)
• Standards Compliance: DIN 43589-1, EN 1175-1

160A Heavy Duty Battery Connector Male & Female Set – Applications:

• Industrial Machinery
• Material Handling Equipment
• Forklifts and Electric Vehicles
• Battery Storage Systems
• Solar Power Installations
• Backup Power Systems
• Electric Charging Stations
• Marine and Automotive Applications

Upgrade your power connection system with our professional-grade 160A Heavy Duty Battery Connector Male & Female Set. These heavy-duty connectors provide the reliability and performance needed for critical industrial applications where power transfer safety and efficiency are essential.

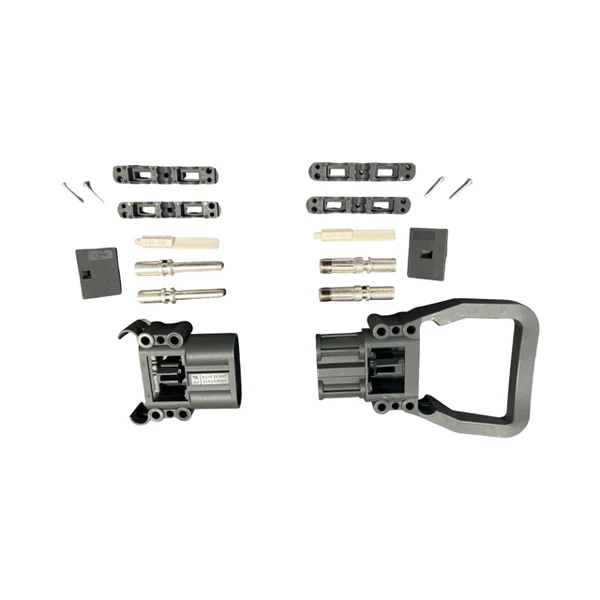

Package Includes:

• 1 × 160A Male Battery Connector and Terminal Sets
• 1 × 160A Female Battery Connector and Terminal Sets
